NW Viewports

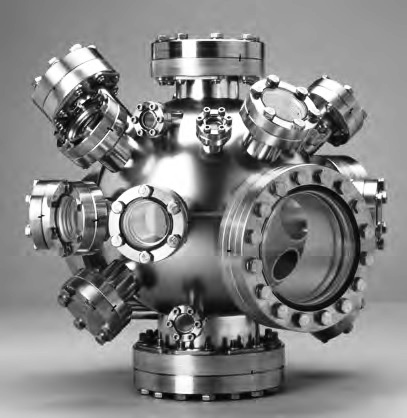

7056 glass NW viewports in a one-piece assembly. This viewport replaces a blank off cap and uses a standard NW centering ring assembly and clamp for sealing. NW Zero Length Viewports Nor-Cal’s zero length viewports have an innovative design which places the viewing glass inside the centering ring. The clear, polished quartz can be removed for cleaning or replacement.Zero length viewports are available for NW-40 and NW-50 flange sizes. ISO & CF Zero Length Viewports ISO and CF viewports are one-piece assemblies (See diagram to the left). For clamps and fastening hardware, please refer to the appropriate flange section. Viewport Weld Stubs Weld stub viewports are provided with a tube for welding onto an existing chamber
NW, ISO & CF Glass Adapters

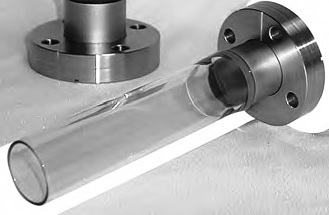

Nor-Cal manufactures glass adapters in 7740 Pyrex and 7052 glass. These adapters are useful for mounting glass accessories to metal high vacuum systems, or to attach flange mounted components to glass systems.
These adapters are available standard with NW, CF, and ISO flanges.
Viewport Shutters

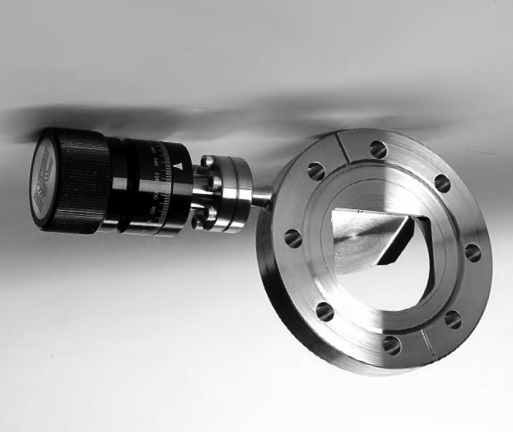

Nor-Cal Products manufactures shutters for viewport shielding. These shutters are mounted behind a viewport to prevent build-up of deposition materials on viewports while in the closed position. They use a single plate shutter with a 90º opening rotation. Nor-Cal’s design completely shields the viewing glass when the shutter is in the closed position. An integrated PRM-133 rotary motion feedthrough provides smooth actuation and a positive locking screw. Please call for custom actuation options, such as motor drives or special flanges.
